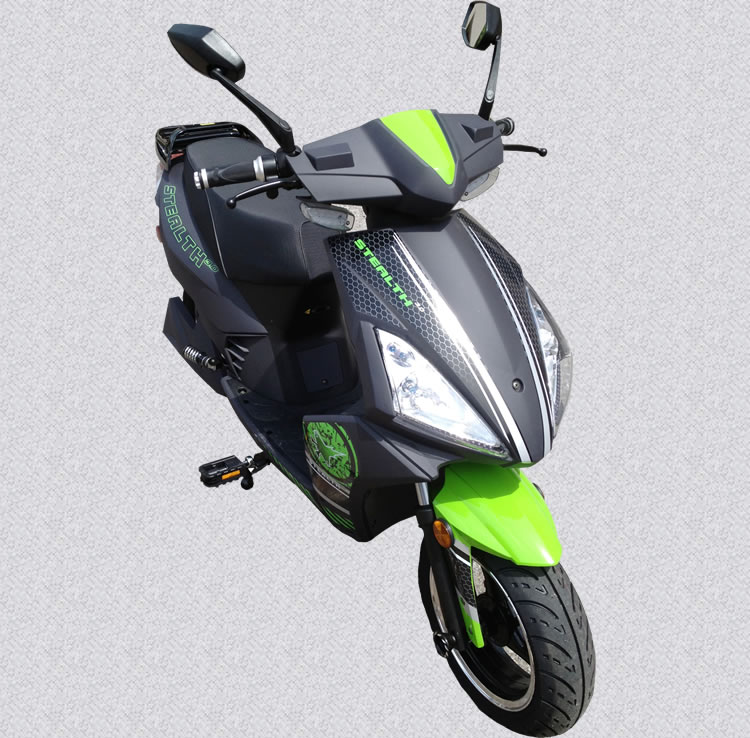

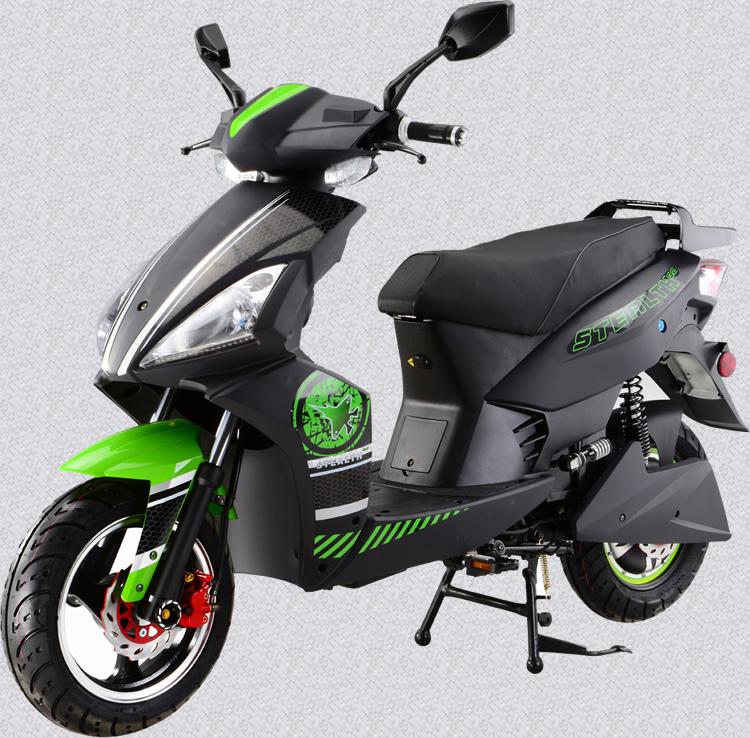

STEALTH

Sportive & Aerodynamic

CLICK TO ENLARGE


Features

Remote control

  • Stop
  • Start
  • Activate alarm system
  • Deactivate alarm system

Fully equipped

  • 3-speed selector
  • High and low lights
  • Blinker
  • Horn
  • Locking mechanism

4-inch wide wheels

Grip & Stability

LED headlight

Powerful & Long lasting

Passenger step board

Improved comfort

Center stand

For temporary and long term stops

Hydraulic suspension

Rear & Front

Hydraulic disk brakes

Secure braking

Integrated MP3 player and FM radio

Built-in speakers

Technical specifications

Available Colors Green - Red - Yellow - White
Dimensions 1800 x 670 x 1100 mm
Center Distance 1320 mm
Net Weight 101 kg
Climbing Ability 15°
Max Speed 32 km/h (with limitation)
Range Per Charge 60-75 km
Rated Torque 56 N.m.
Rated Power of Motor 500W
Battery Lead-acid battery
Battery Capacity 20Ah
Input Voltage of Charger AC-110V-50Hz
Undervoltage Protect 42±0.5V
Charging Time 5-6 heures

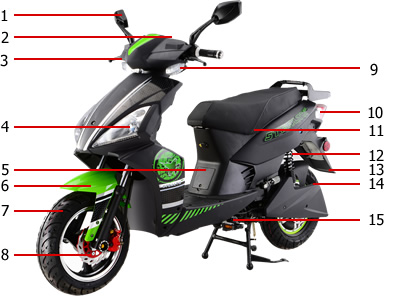

Component diagrams

  • Rear-view mirror
  • Dashboard
  • Handle, Throttle, Front brake
  • Headlight
  • Charge plug
  • Front mud fender
  • Front tire
  • Front disk brake
  • Front blinker
  • Rear LED Lamp
  • Underseat storage
  • Rear shock absorber
  • Rear mud fender
  • Rear tire
  • Center stand

User manual

 User manual


Comfort and energy efficiency
