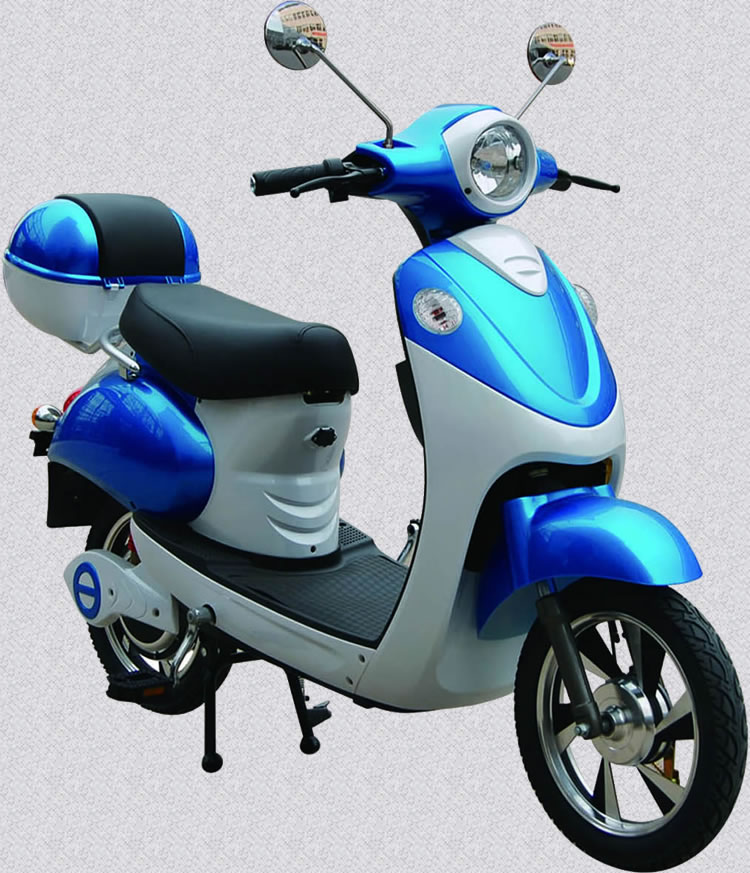

VENICE

Simplicity at a fair price

CLICK TO ENLARGE


Features

Remote control

  • Stop
  • Start
  • Activate alarm system
  • Deactivate alarm system

Fully equipped

  • 3-speed selector
  • High and low lights
  • Blinker
  • Horn
  • Locking mechanism

4-inch wide wheels

Grip & Stability

Passenger step board

Improved comfort

Center stand

For temporary and long term stops

Hydraulic suspension

Rear & Front

Removable battery compartment

Storage compartment

Technical specifications

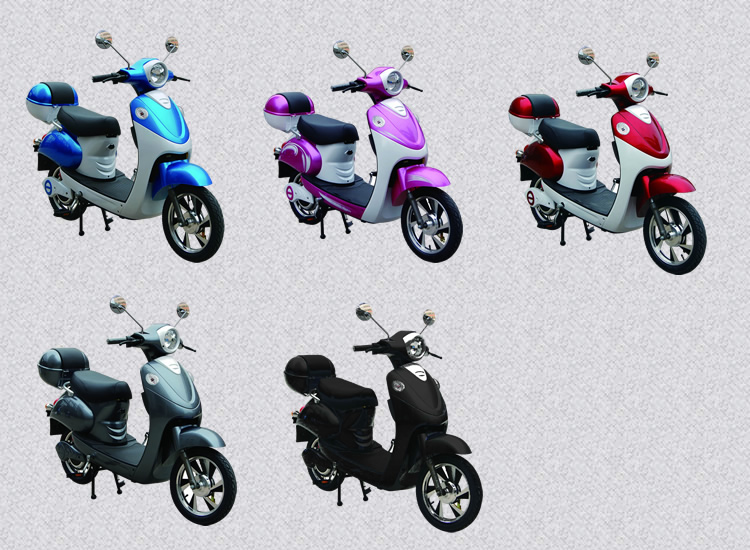

Available Colors/td> Blue - Black - Pink - Silver - Grey
Dimensions 1700 x 630 x 1070 mm
Center Distance 1150 mm
Net Weight 64 kg
Climbing Ability 15°
Max Speed 32 km/h (with limitation)
Range Per Charge 40-50 km
Rated Speed 440 rpm
Rated Voltage of Motor 48V
Rated Efficiency 80%
Rated Torque 9.0 N.m.
Rated Power of Motor 600W
Battery Lead-acid battery
Battery Capacity 12A
Input Voltage of Charger AC-110V-50Hz
Undervoltage Protect 42±0.5V
Charging Time 8-10 heures
Overcurrent Protect 22A

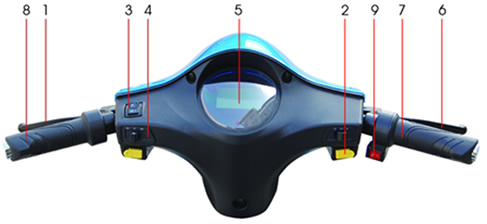

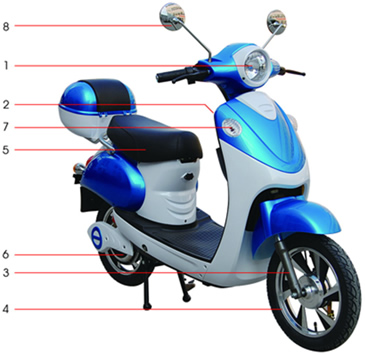

Component diagrams

  • Front light
  • Start switch
  • Front suspension
  • Wheel and tube
  • Seat
  • Motor hub
  • Front steering
  • Rear view mirror
  • Rear brake
  • Horn
  • Front light
  • Blinker
  • Speedometer
  • Front brake
  • Throttle
  • Handle
  • Emergency stop switch

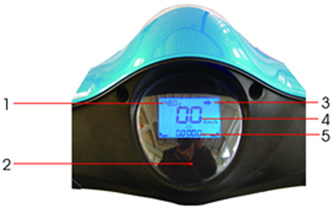

  • Voltmeter
  • Battery indicator
  • Blinker
  • Odometer
  • Speedometer

User manual

 User manual
